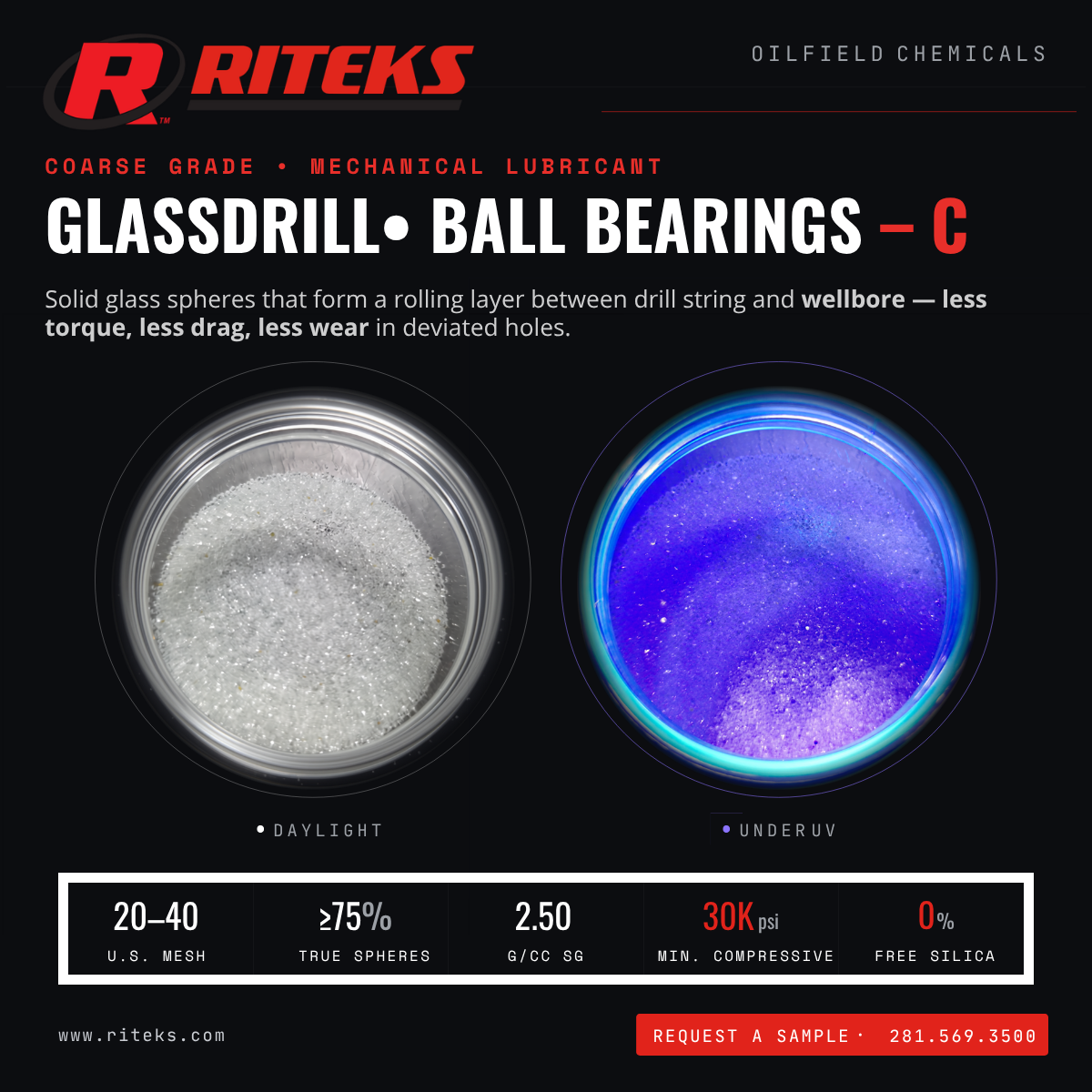

Riteks’ Oil Drilling Coarse GlassDrill Ball Bearings are designed to optimize drilling efficiency, especially in deviated holes where friction and torque can be problematic. These solid glass spheres act as micro ball bearings, forming a lubricating layer that significantly reduces friction between the drill string and the wellbore.The reduction in friction lowers the torque needed, resulting in smoother drilling and less equipment wear. Made from high-quality soda lime glass, the GlassDrill Ball Bearings are free of imperfections and are chemically inert, ensuring they do not alter the mud system's properties while enhancing overall drilling performance.
Other Names & Identifiers
Drilling Aid
Mechanical Friction and Torque Reducer
Casing Run In Hole Aid
APPLICATIONS & BENEFITS
FEATURES & ADVANTAGES
APPLICATIONS & BENEFITS
Riteks’ GlassDrill Ball Bearings are precision-engineered with a U.S. Sieve size of 20-40 mesh, ensuring consistency in particle size. These beads are characterized by a minimum of 75% true spheres, providing excellent roundness.With a specific gravity of approximately 2.50 g/cc and a Mohs hardness of 5 to 6, they offer durability and resilience in demanding drilling environments. The GlassDrill beads also boast a compressive strength of at least 30,000 psi and are completely free of silica, ensuring both safety and performance in drilling applications
Technical Specifications
PACKAGING
50lb Boxes
GENERAL PHYSICAL PROPERTIES
Specific Gravity
Nominally 2.50 g/cc
US Sieve
20-40 Mesh
Roundness
Min 75% True Spheres
MOHS Hardness
5-6
Compresssive Strength
30,000 psi min
Free Silica
0%
