OILFIELD CHEMICALS
iLLumaFlow™ OG-40
Fluorescent Visual Marker Additive
JUMP TO
GENERAL DESCRIPTION

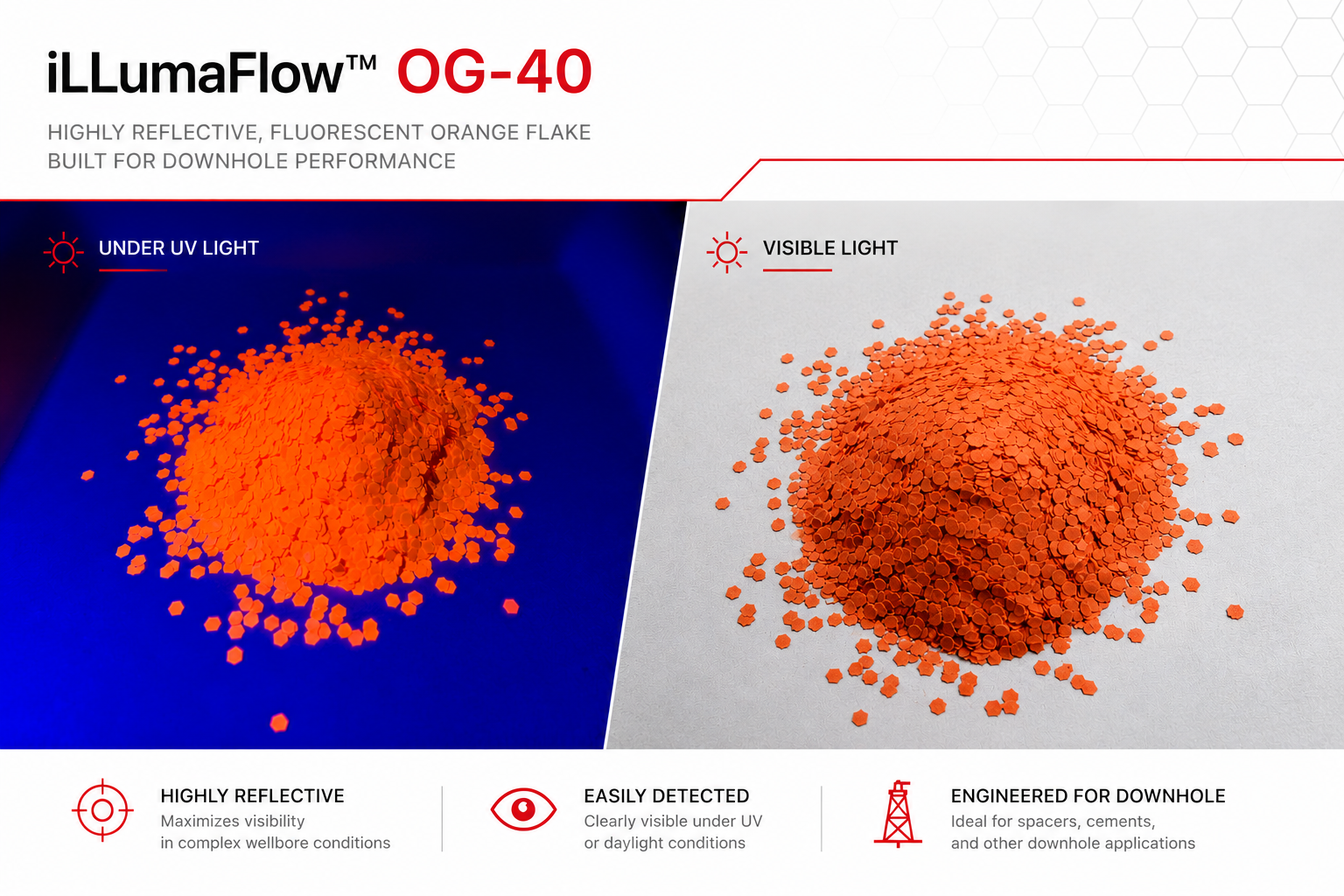

iLLumaFlow™ OG-40 is a highly reflective, fluorescent orange flake built for downhole use that can be added to spacers, and other fluids to create a bright visual marker for easily distinguishing returns. The small dry flake provides strong visual contrast during daylight operations and glows under blacklight to enhance visibility in low-light conditions. Being a dry additive, iLLumaFlow™ OG-40 can be conveniently mixed either on location or at the bulk plant, helping reduce logistics and simplify operations when compared to traditional liquid dye systems.
Other Names & Identifiers
- Tracer
- Dye Alternative
Common Challenges
- Fluid Identification
- Surface Returns Monitoring
- Environmentally Friendly Tracer
APPLICATIONS & BENEFITS
APPLICATIONS
APPLICATIONS & BENEFITSiLLumaFlow™ OG-40 is designed for use as a visual aid for circumstances that warrant the user to witness the flow of returns back at surface. Below are some guidelines for loading the product. It should be noted, the darker the fluid, the more iLLumaFlow™ OG-40 needed to be seen.
FEATURES & ADVANTAGES
APPLICATIONS & BENEFITS- Fluorescent orange flake built for downhole use
- Enhances return visibility in daylight and low light with black light flashlight
- Compatible and inert in spacers, cements, drilling fluids
- Dry additive simplifies mixing, handling, and logistics
- Temperature resistant up to 275 °F (135 °C)
Technical Specifications
PACKAGING
2 Kg Bags-16 Kg/Carton
432 Kg Pallet
GENERAL PHYSICAL PROPERTIES
Appearance
Dry, Bright Orange Flake
Specific Gravity
1.19
Absolute Volume
0.092 gal/lb
Bulk Density
34.24
Water Req (gal/lb)
0
Main Function
Marker Pill Additive
